How to Perform Vibrating Concrete efficiently hinges on selecting the right vibrator and executing insertion, spacing, frequency, and withdrawal with precision to consolidate fresh concrete, expel trapped air, and yield a dense, durable slab without segregation. For practical, field-proven guidance, see How to Perform Vibrating Concrete.
| Task | Guideline | Typical Time / Spacing |
|---|---|---|
| Internal Vibration (poker) | Insert vertically under own weight; hold until bubbles stop; withdraw slowly | 5–15 seconds per insertion; center-to-center spacing ≈ 1.5× radius of influence |
| Surface Vibration (vibra screed / bull float) | Finish top layer and reduce surface voids; complements internal vibrators | Run continuously during screeding; avoid overworking edges |
| Preventing Over-Vibration | Watch for water or paste rising to the surface — reduce time or amplitude | Shorten dwell time; reduce overlap |
Core Principles of Vibrating Concrete
Vibration lowers internal friction in fresh concrete so entrapped air can escape and mortar can fill voids around aggregate and reinforcement. The goal is proper consolidation without segregation (paste separating from aggregate) or surface flushing (excess water and fines rising to the top). For formal guidance, consult California Concrete Technology Manual, Chapter 5 (Concrete Construction) to define proper vibration practices, acceptable frequency ranges, and cautions against segregation and surface flushing during concrete consolidation.

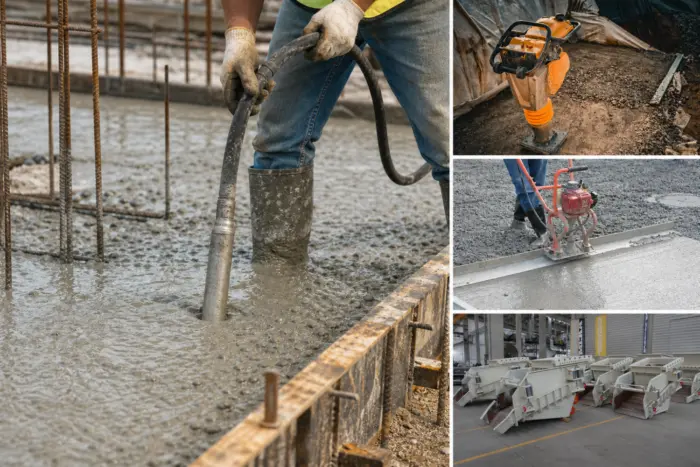

Internal Vibration: Poker/Immersion Vibrators
Internal vibrators are standard for structural members and slabs deeper than roughly 3–4 inches. Implement this routine for reliable consolidation:
- Confirm head size and frequency to match job depth and aggregate size; smaller heads for high-slump mixes, larger heads for low-slump mixes.
- Insert vertically under its own weight; avoid forcing the head in.
- Turn on once fully submerged; hold until visible bubbles largely stop escaping from the surface.
- Withdraw slowly, about 1 inch (25 mm) per second, so adjacent concrete closes behind it.
- Move to the next insertion so zones of influence overlap (typical spacing ≈ 1.5× the head’s radius).
Surface Vibration and Finishing: Screeds, Bull Floats, and Access
Surface vibrators concentrate energy at the top layer, aiding leveling and reducing surface voids. They are most effective when used to complement internal vibration on slabs within the screed’s practical depth. Best practices:
- Set screed speed and amplitude to produce a smooth, uniform pass without dragging aggregates.
- Maintain steady movement; avoid stopping mid-run or reworking the same line excessively.
- For long pours, consider battery- or gasoline-powered vibra screeds for portability and consistency.
Vibration Timing: Frequency, Amplitude, and Dwell
Both frequency and amplitude influence consolidation. Practical guidelines include:
- Insertion dwell time: start with 5–15 seconds per insertion and adjust based on bubble activity and surface consolidation.
- Spacing: ensure overlap of zones of influence—commonly 300–600 mm (12–24 in) depending on head size.
- Mix characteristics: higher frequency with lower amplitude suits high-slump concretes; lower frequency with larger amplitude suits stiffer mixes.
Key Tools and When to Use Them
Choosing the right tool depends on member type, thickness, access, and finish requirements. Common options include:
- Internal vibrator (poker) — best for columns, beams, deep slabs, footings.
- Vibrating screed (vibra screed, beam screed) — long-slab screeding and surface consolidation.
- Vibrating bull float / magvibe — initial surface consolidation after screeding.
- External/form vibrators — suitable for precast, walls, and panels.
- Hand-held trowels — final smoothing after initial set begins.
Troubleshooting Common Vibrating Concrete Problems
Spot issues early and adjust technique:
- Surface flushing: reduce dwell time, move the vibrator sooner, or switch to a smaller head.
- Segregation: vibration too intense or too long; reduce amplitude or time.
- Honeycombing or voids: insufficient overlap of insertion points or poor access around reinforcement; revise the pattern and increase coverage.
- Excess air after withdrawal: reinsert briefly in the area and slow withdrawal.
Safety, Handling, And Jobsite Best Practices
Vibration involves powerful equipment; follow standard safety protocols:
- Wear PPE: gloves, hearing protection, eye protection, and boots with concrete-resistant soles.
- Keep electrical cables and fuel sources clear of wet concrete and traffic paths.
- Avoid forcing a poker head through obstructions; modify forms or rebars as needed.
- Keep spare heads, tips, and repair parts on hand; consider rental options for short projects.
Concrete Scenarios: Tailoring the Approach
Slabs
Use internal pokers for depth and a surface screed or bull float to finish the top layer. Pattern insertions to match slab thickness, then follow with surface consolidation.
Columns and Vertical Forms
Attach form vibrators to the formwork or use internal pokers vertically along the depth, avoiding contact with rebar and form faces.
Walls and Precast Units
External vibrators paired with selective internal vibration are common; ensure vibration does not drive excess mortar to form faces.

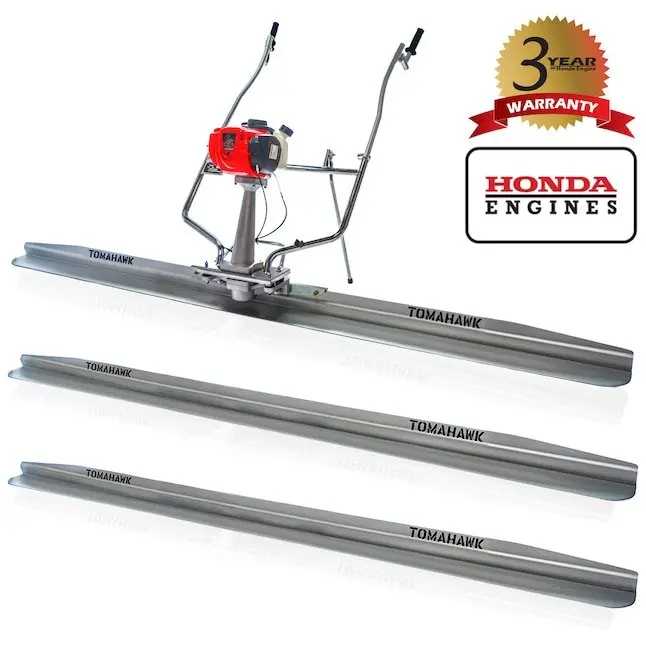

Choosing, Renting, and Buying Vibrating Screeds
When selecting a vibrating screed or renting one for a job, consider:
- Power source: battery (cordless), electric, or gasoline—cordless options can reduce noise and improve handling on small-to-medium jobs.
- Beam length: match to pour width and crew size; twin- or double-beam options exist for large pours.
- Vibration control: adjustable frequency and amplitude to suit concrete consistency.
- Availability: renting vibra screed or rattle sticks may be sensible for one-off projects.
Frequently Asked Questions
How long should I vibrate concrete?
Begin with 5–15 seconds per insertion and adjust by monitoring bubble release and consolidation. Deeper, stiffer mixes may require shorter dwell times but closer spacing.
Can I vibrate concrete with a drill or DIY tool?
DIY drilling or improvised tools lack adequate frequency control and durability for structural work; use purpose-built vibrators or hire professionals.
Is vibration always necessary?
For most structural pours and thicker slabs, internal vibration is highly beneficial for density and durability. Some very shallow or well-designed self-consolidating concretes may rely more on surface vibration.
Practical Pre-Start Checklist
- Confirm mix slump, aggregate size, and any admixtures that affect workability.
- Choose vibrator head size and screed length appropriate for the element.
- Plan an insertion pattern with overlapping zones of influence.
- Test a small area and check for honeycombing, flushing, or segregation; adjust timing and frequency accordingly.
- Stock spare tips/shafts and PPE on site.
Beyond the core how-to, consider practical sourcing and continuous-learning opportunities. For a quick-market reference on vibration equipment, readers can review Concrete vibrators on Amazon.
Internal link opportunities: readers may also find value in Architecture Adrenaline's practical explorations of related topics, including the concrete-masonry category for broader context and best-practice discussions (Concrete & Masonry Archives). For executing concrete vibration techniques in real projects, see the dedicated article on How to Perform Vibrating Concrete. A separate internal exploration of translucent concrete discusses how vibration is used during casting in practice (Translucent Concrete: A Revolutionary Building Material for 21st Century Architecture).
Recommended Standards and Guidance to Inform Practice
Adopt a consolidation approach informed by authoritative guidance on vibration and concrete density. Consider the following resources to define proper vibration frequency ranges, coverage, and procedures used on real projects:
- California Concrete Technology Manual, Chapter 5 (Concrete Construction) for vibration practices, frequency ranges, and segregation/surface-flush cautions.
- FHWA Focus: The Concrete of the Future and vibration guidance as a reference for consolidation considerations and SCC implications.
- World Bank Supervision Manual for concrete consolidation to frame density and void-avoidance principles in project supervision.
- Iowa DOT Specification 2403 – Concrete vibration guidance for continuous coverage and equipment selection in reinforced applications.
- NRCS Consolidating (Vibration) guidance for practical insertion/removal rates and spacing on field applications.
Final Notes: Practical, Quantified Guidance
When choosing vibration strategies, always align head size, frequency, and dwell time with concrete slump, aggregate size, and form access. Typical operations call for 5–15 seconds per insertion, 300–600 mm (12–24 in) spacing between insertion zones, and a cadence that ensures overlap without overworking the paste. For deep pours, maintain a consistent depth pattern to avoid voids, and always withdraw slowly to prevent mortar channels. If in doubt, consult the California manual or the NHWA/NRCS consolidation guidance to confirm that your approach meets current industry standards.
For quick reference on equipment options, readers can explore Amazon listings for concrete vibrators as a practical buying guide and to compare heads and diffusers in real-world projects. See Concrete vibrators on Amazon.
```
Basics of Concrete Vibration:
Performing vibrating concrete might seem a bit daunting at first, but with the right techniques and a sprinkle of practice, you’ll master it in no time. Remember, the key is to approach it with patience and care; rushing through the process can lead to less than ideal results. Whether you’re pouring a patio or a foundation, achieving that perfect finish is all about consistency and attention to detail. So, buckle up, get your tools ready, and bring that concrete to life with the perfect vibration!
