Washing Machine Drain Plumbing Guide: Step-by-Step Tips

When it comes to modern home design and functionality, one essential component is the proper setup of washing machine drain plumbing. Not only is it crucial to connect water lines correctly, but also to ensure effective drainage, which protects your home from potential water damage and enables efficient operation of your washing machine. Whether you're remodeling your laundry room or installing a new unit, understanding the ins and outs of washing machine plumbing can streamline the process and optimize performance.

Connecting Water Lines for Your Washing Machine

One of the first steps in plumbing for a washing machine is connecting the water lines. Use hose bibbs screwed into drop-ear elbows to secure these connections:

• Select drop-ear elbows that match your pipe type, whether PEX, CPVC, or copper.
• Ensure the elbows are firmly secured to the wall, and attach the hose bibb so that the threads point straight down.
• Alternative fittings, like a boiler drain or ball-valve boiler drain with 1/2-in. male threads, can be used based on preference and availability.

Drilling Into Masonry Walls

In some installations, particularly in basements or older homes, you may need to affix plumbing to masonry walls:

• Employ a hammer drill for this task as it ensures efficient drilling by combining a hammering and turning motion.
• Choose masonry screws, preferably 1/4-in. or 5/16-in. hex heads, and use a drill of the correct size to maintain hole integrity.

Choosing and Installing a Washer Box

A washer box becomes indispensable for organizing water connections and drainage:

• Install washer boxes between studs using mounting brackets for security and alignment.
• Avoid inexpensive kits missing long-shanked valves, and look for models with lever handles for ease of use and longevity.
• Select washer boxes with a single easy-turn lever that operates both valves and antishock valves to minimize water hammer effects.

Steps for Installing a Washer Drain

A functional washing machine drain must adhere to certain specifications to avoid issues:

• Use a 2-in. drainpipe, typically Schedule 40 PVC, and ensure a standpipe of approximately 36 in. connects to a 2-in. horizontal P-trap.
• Follow the plumbing code by extending the horizontal run after the trap to at least twice the diameter of the pipe—4 in. for a 2-in. pipe—to avoid illegal S-traps.

Connecting the Washer

Once the plumbing fixtures are in place, it's time to hook up the washing machine itself:

• Connect the washer hoses accurately: hot to hot, cold to cold.
• Position the washer drain hose securely into the drainpipe within the washer box.
• Turn on the water supply and closely monitor for any leaks, ensuring that hot and cold water settings are correctly aligned.

General Plumbing Tips

Always consider these pointers to ensure compliance and functionality when installing washing machine drains:

• Check your local building codes as they might mandate that washer outlets be roughed in during the initial stages of new construction, irrespective of immediate use plans.
• Employing a washing machine plumbing kit can simplify the process by providing all necessary components for installation.

By following these practical steps and guidelines, you will not only safeguard your home’s structural integrity but also enhance the washing machine's performance. Whether it's through the intricate details of the washing machine plumbing diagram or understanding the nuances of different materials and setups, well-executed plumbing turns your laundry chores into a seamless task.

See also  Mermaid Hair 101: A Complete Guide to Achieving this Beachy Look

Heavy Duty Washing Machine Drain Clamp - Essential for Secure and Leak-Free Connections

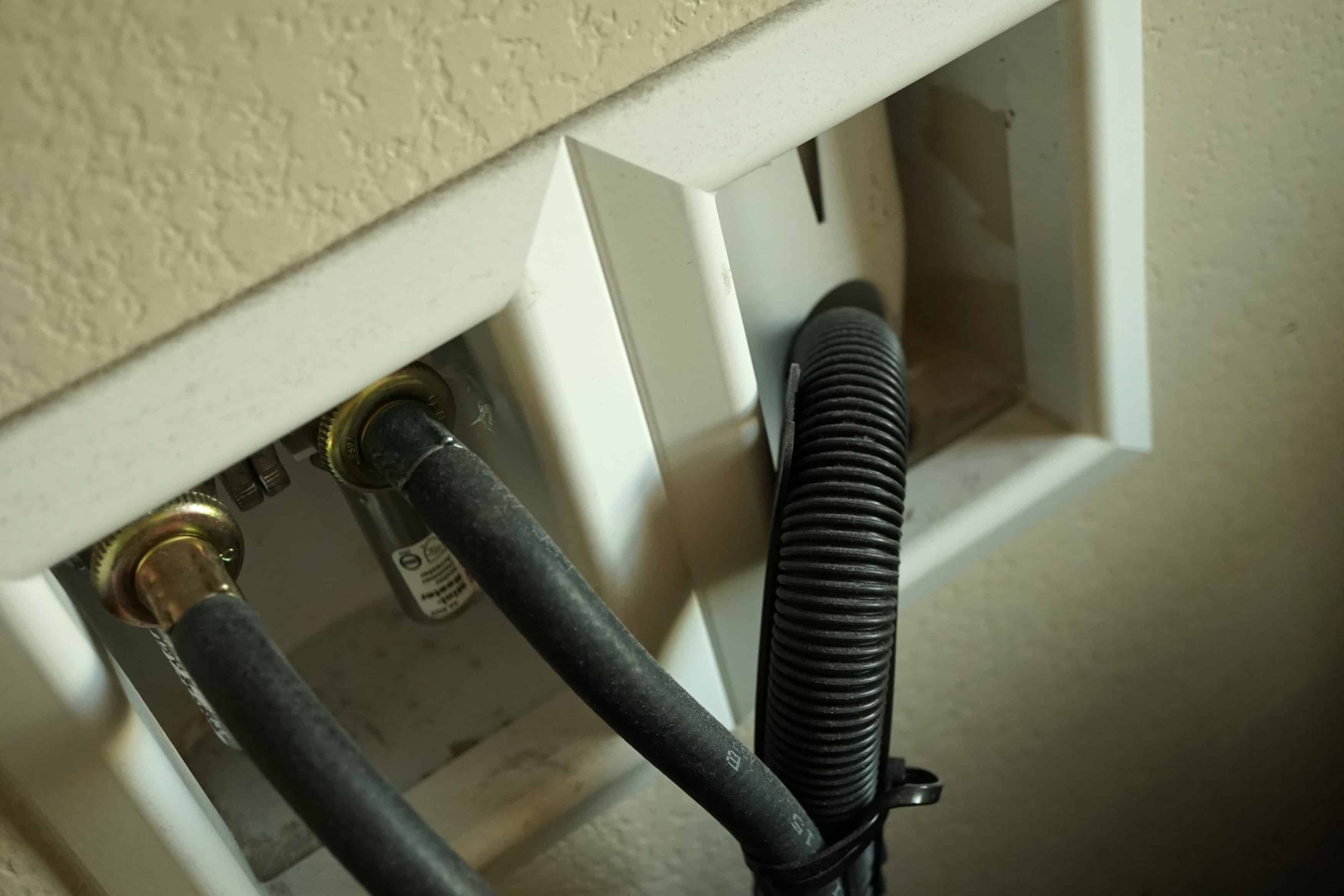

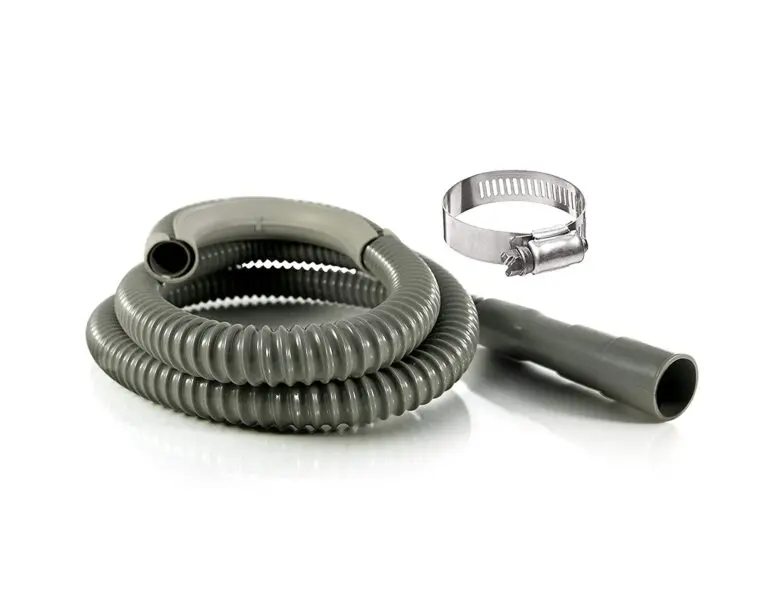

When plumbing a washing machine drain, the durability of your components is paramount. Enter the Heavy Duty Washing Machine Drain Clamp, a robust solution built to guarantee a secure and leak-free connection. The image reveals a sturdy, corrugated hose and a solid clamp with a precise tightening mechanism, ensuring a grip that withstands the rigors of daily laundry. This clamp is an essential player in maintaining the integrity of your washing machine's drainage system, promising ease of installation and long-term reliability.

Material: Stainless Steel (Clamp)

Compatibility: Standard Washing Machine Hoses

Features: Corrosion-resistant, Easy to adjust

Installation: Tool-Free Setup

Package Contents: Corrugated Hose, Stainless Steel Clamp

Enhance Your Laundry Room with the Stainless Steel Washing Machine Drip Pan

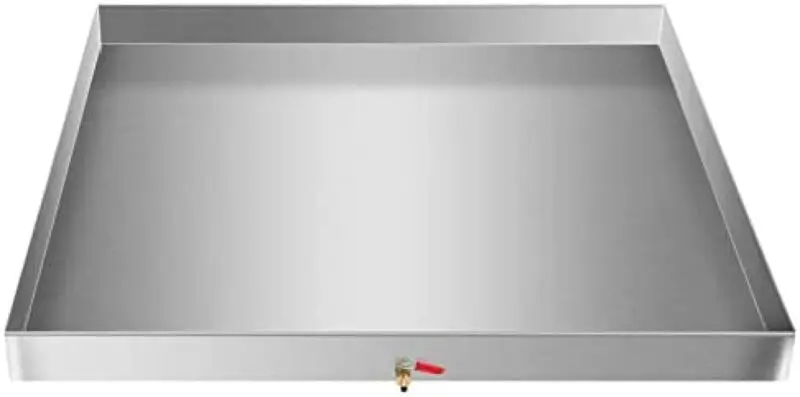

In the quest for a pristine laundry room, the Stainless Steel Washing Machine Drip Pan stands out for its robust build and sleek design. As you plumb your washer's drain line, this pan acts as a safeguard, capturing any accidental spills or leaks. Constructed from high-grade stainless steel, it resists corrosion and adds a touch of elegance to your appliance setup. The pan's size ensures a snug fit for standard washers, while the pre-installed drain fitting allows for hassle-free connection to the drainage system. With its reliable protection and effortless maintenance, this pan is an indispensable addition to any laundry renovation or installation project. Enhance your plumbing solution and give your laundry space a professional finish with this essential accessory.

Material: High-grade stainless steel

Corrosion-resistant

Pre-installed drain fitting

Compatible with standard washer sizes

Discover the ideal partner for your plumbing needs with this Stainless Steel Washing Machine Drip Pan.

Unlock Leak-Free Laundry with the HG 1 Fernco Clothes Washer Connector

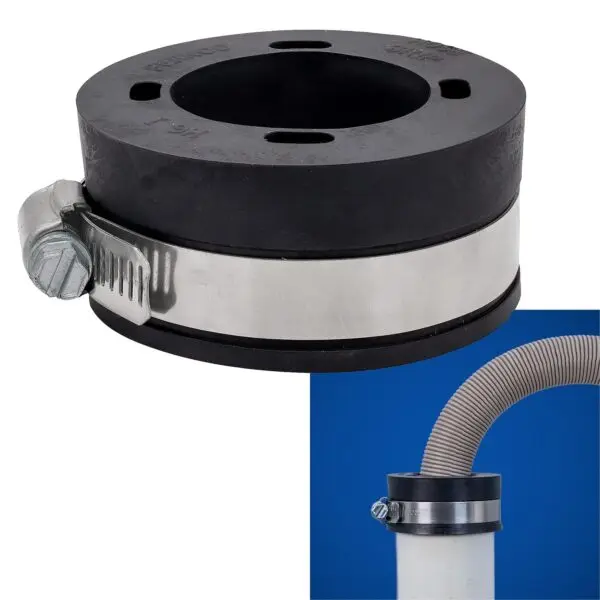

For DIY enthusiasts looking to ensure a perfect and hassle-free connection to their washing machine drain, the HG 1 Fernco Clothes Washer Connector is an essential. This robust connector allows for a secure and tight seal without the need for complex tools or costly plumbing services. The image shows the high-quality, flexible construction and stainless-steel clamp, signifying durability and ease of installation. Its compatibility with standard washing machine hoses makes it an indispensable component for a leak-free laundry setup. Discover the ease of plumbing your machine drain with this reliable connector here.
