Sun Diagram For Architecture

What is a Sun Diagram?

A sun diagram is a graphical representation that shows the movement of the sun across the sky. It displays how the sun travels in relation to a site or building throughout the day, seasons, and years. Sun diagrams can help architects and designers in optimizing the site's potential for natural light and warmth, improving energy efficiency, and creating an overall sustainable and comfortable environment.

The Benefits of Using Sun Diagrams

There are several benefits that sun diagrams offer for architectural purposes:

• Maximizing natural light. By analyzing the sun's path, architects can determine the best location, orientation, and size of windows, skylights, and other openings to ensure adequate natural light throughout the day, reducing the need for artificial lighting.
• Reducing energy consumption. Sun diagrams can also help architects to reduce the amount of energy required for heating and cooling by positioning the building's mass, windows, and shading devices to take advantage of passive solar heating and cooling opportunities.
• Improving comfort and wellbeing. Natural light can significantly impact people's mood, productivity, and overall wellbeing. Using sun diagrams to incorporate natural light into the design can create a more pleasant and healthy environment for the building's occupants.
• Designing sustainable buildings. Sun diagrams can help architects to design a building that works with, rather than against, its natural environment, contributing to a more sustainable and efficient design that reduces environmental impacts.

The Elements of Sun Diagrams

A sun diagram typically consists of several key elements:

1. The site plan. The site plan is the starting point for the sun diagram. The site plan shows the location of the building, topography, vegetation, and other relevant elements.

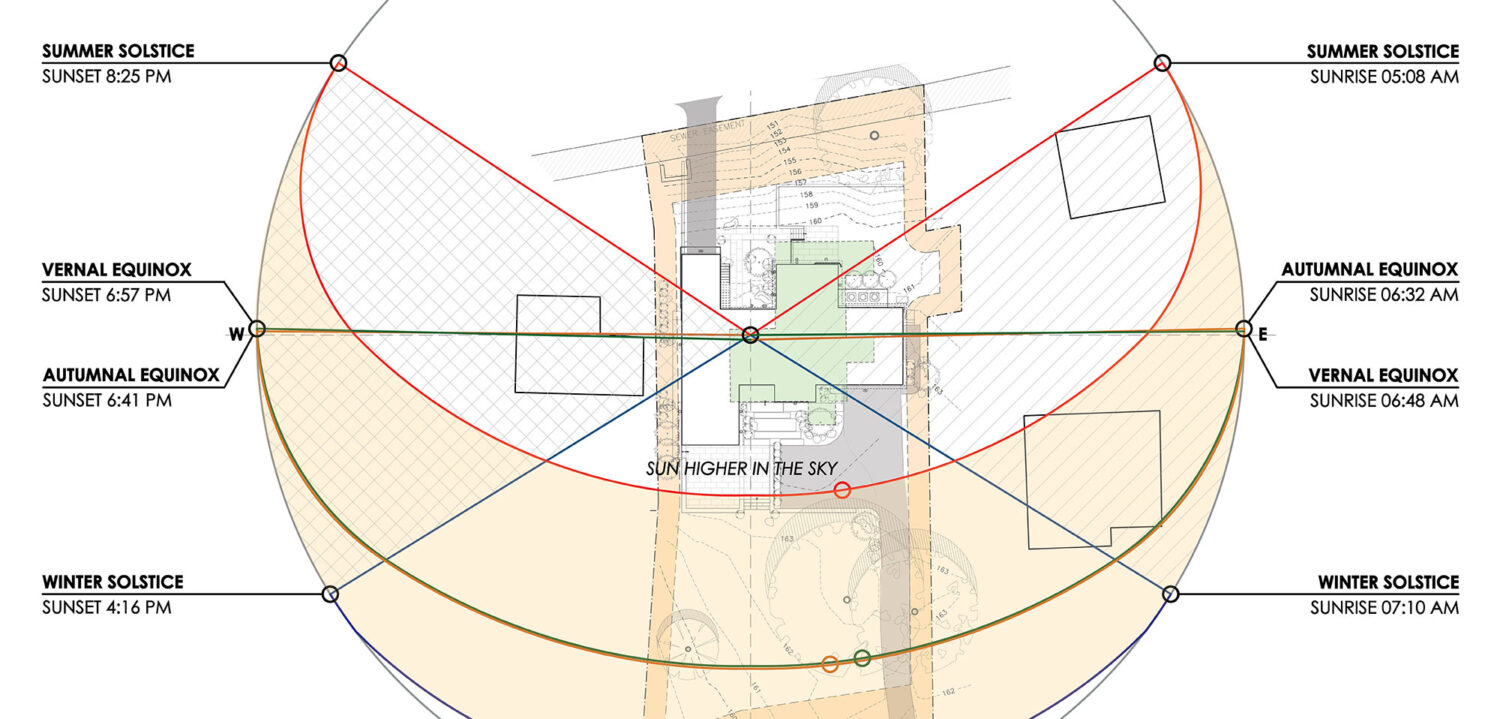

2. The sun's path. The sun's path shows the movement of the sun throughout the year, including the solstices and equinoxes. The sun's path is usually represented by a curved line on the diagram that indicates the sun's azimuth and altitude angles at different times of the day.
3. The shadows. The shadows show how the sun's path impacts the building's surrounding environment, including adjacent buildings, trees, and other structures. Shadow lines are shown on the diagram to indicate the areas that receive direct sunlight and those that are shaded.
4. The solar angles. The solar angles show the sun's altitude and azimuth angles at different times of the day. The altitude angle is the angle between the horizon and the sun's center, while the azimuth angle is the angle between the sun's path and the true North.

How to Create a Sun Diagram

To create a sun diagram, architects and designers can use various tools and techniques, such as:

• Computer software. Several 3D modeling, rendering, and simulation software programs can generate sun diagrams automatically based on the site's geographic information, orientation, and other parameters.
• Manual methods. Architects can also create sun diagrams manually using a compass, a protractor, and a scale to draw the sun's path, shadow lines, and solar angles on paper or digitally.
• Online resources. Various online resources offer free or low-cost sun diagram generators that allow architects to input the site's coordinates and generate a basic sun diagram.

Examples of Sun Diagrams in Architecture

Sun diagrams have been used in various architectural projects to optimize natural light, energy efficiency, and sustainability. Here are a few examples:

• The Eden Project. The Eden Project is an eco-tourism complex in England that features two large biomes or greenhouses covered by ETFE cushions. The architects used sun diagrams to determine the orientation, inclination, and size of the ETFE cushions to ensure optimal natural light and energy performance.
• The California Academy of Sciences. The California Academy of Sciences is a natural science museum in San Francisco that features a green roof, a living wall, and a planetarium. The architects used sun diagrams to position the building's mass and glazing to maximize natural light and reduce solar heat gain.
• The Ghost House. The Ghost House is a residential project in Australia that features a perforated metal screen on its façade that creates a shadow pattern on the interior walls. The architects used sun diagrams to position the perforations on the screen to create the desired shadow pattern and natural light effect.
