A continuous weather-resistive barrier (WRB) paired with a deliberate 3/8"–1/2" ventilation cavity behind the siding is essential for a durable rainscreen—delivering effective drainage, reliable air-sealing, and accelerated drying of the wall assembly.
| Key Component | Typical Specification | Why It Matters |
|---|---|---|
| Weather-Resistive Barrier (WRB) | Self-adhered or housewrap continuous over sheathing | Primary drainage plane and air-sealing layer under the rainscreen |
| Ventilation Cavity | 3/8"–1/2" nominal (system dependent) | Allows drainage and promotes drying of the wall assembly |
| Vents & Insect Screens | Cor-A-Vent SV-3/SV-5 or equivalent at top & bottom | Provides airflow and keeps pests out while letting water exit |
What makes rainscreen siding worthwhile
A properly executed rainscreen system protects both the cladding and the underlying wall from moisture-driven deterioration. It helps reduce rot, extends the life of finishes, and often supports manufacturer requirements for ventilated cavities in products such as HardiePanel or other claddings. The approach works across materials—from cedar and Garapa to fiber cement or composite options—and scales from retrofit projects to new constructions.
Core materials and tools you’ll need
Before you begin, assemble the following essentials to keep the project on schedule and to ensure a durable installation:
- Weather-Resistive Barrier (WRB) or self-adhered WRB
- Rainscreen clips or furring strips (examples: Climate-Shield CS2, other battens)
- Starter rails and system-specific flashing
- Top and bottom vents with insect screens (Cor-A-Vent SV-3/SV-5 or equivalent)
- Siding material (cedar, Ipe, Garapa, HardiePanel, LP SmartSide, etc.)
- Appropriate fasteners (stainless steel or hot-dipped galvanized as required by the siding)
- Sealants, flashing tapes, and liquid flashings for rough openings
- Tools: drill/driver, level, chalk line, saw suitable for your siding
Step-by-step: installing rainscreen siding over sheathing
Adapt the following sequence to match your wall system (plywood or OSB) and siding orientation (vertical or horizontal).
- Inspect and prepare the wall: fix any damaged sheathing, verify studs are plumb, and clear debris.
- Install a continuous WRB: apply per manufacturer guidance, ensuring proper lapping and integration with window/door flashing.
- Detail rough openings: apply liquid flashing or self-adhered flashing at sills, jambs, and corners to maintain a continuous drainage plane.
- Set the starter rail at the bottom course: establish a level line and secure per the rainscreen system’s requirements.

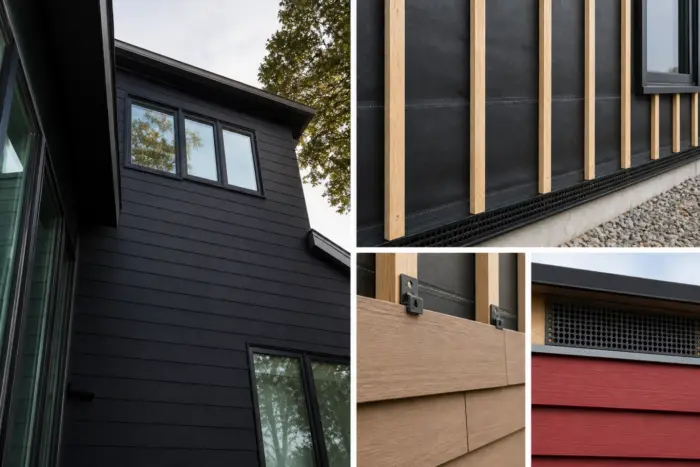

- Install rainscreen clips or furring: space clips or battens to create a consistent 3/8"–1/2" cavity.
- Create ventilation paths: install bottom vents and top vents, adding insect screens to both ends where specified.
- Attach siding to clips or furring: follow manufacturer spacing, predrill hardwoods where needed, and maintain expansion gaps as required by the material.
- Finish flashings and trims: install head flashings, corner trims, and transitions; seal all penetrations with compatible sealants.
- Verify cavity continuity: confirm an unobstructed ventilation path and unobstructed drainage at every wall segment.
Battens vs. clips: choosing the right method for the ventilated cavity
Two primary approaches build the ventilated cavity behind the siding:
- Furring strips (battens) — simple and economical; typical thickness around 3/8"–1/2". Watch for potential moisture entrapment in wood furring and increased thermal bridging.
- Mechanical clips — precise cavity control, often hidden-fastener capable, and quicker on large jobs. They generally reduce moisture risk compared to wood furring and can streamline installation for vertical wood rainscreens.
In vertical wood rainscreen applications, many installers favor clip systems to avoid horizontal wood furring, enabling gravity drainage down the wall.
Hardwoods in rainscreen installations
Durable tropical hardwoods like Ipe, Garapa, Cumaru, and Tigerwood are popular for their weather resistance. Key practices include:
- Predrill all fastener holes for dense woods and use stainless-steel fasteners to prevent staining and corrosion.
- Provide expansion gaps at ends and between boards per the hardwood supplier’s guidance.
- Choose clips or furring sized for the hardwood’s thickness and weight; confirm clip pull-out strength meets anticipated loads.
- Treat exposed ends with a water-repellent preservative to reduce end-grain uptake.
Flashing and WRB integration: aligning with Hardie and other claddings
Flashing and WRB continuity are non-negotiable for rainscreen success. Focus areas include:
- Keep WRB continuous with proper laps in the water flow direction; use compatible flashing tapes at seams.
- Apply liquid flashing or peel-and-stick flashing at sills and corners to maintain the drainage plane.
- When using James Hardie products or similar systems, follow the manufacturer’s guidance for air gaps (commonly about 3/8") and the relevant Quick Reference materials to ensure warranty compliance.
Venting, insect protection, and maintaining airflow
Ventilation is essential to the health of a rainscreen wall. Plan top and bottom ventilation with insect protection as a standard practice:
- Install continuous bottom vents or vent strips to allow drainage and air entry into the cavity.
- Pair bottom vents with top vents or soffit vents to create a through-flow that dries the wall behind the siding.
- Integrate insect screens with vents and keep screens clear of debris, insulation, and paint buildup.
Common installation mistakes to avoid
Avoid these errors that frequently degrade performance:
- Discontinuity or puncturing of WRB, particularly around openings, which can trap moisture.
- Wood furring behind vertical siding without drainage, creating trapped moisture and rot risk.
- Omitting top vents, leaving the cavity unventilated and prone to moisture buildup.
- Using incompatible fasteners or neglecting predrilling on hardwoods, which can cause splitting or staining.
- Neglecting proper flashing details at penetrations, which can allow water to track behind the cladding.
Cost, performance, and planning considerations
Rainscreen upgrades typically add a modest premium but deliver longer service life and lower maintenance. Consider:
- Material choice: hardwoods and premium clip systems raise upfront costs but improve long-term performance.
- Climate: rain-prone or high-wind zones benefit most from a ventilated wall.
- Labor: clip systems may speed installation on complex layouts and reduce labor for large projects.
- Lifecycle savings: fewer rot-related repairs, less repainting, and longer siding life can justify the investment.
Vertical layout considerations and detailing
Vertical rainscreen installations demand careful planning to ensure water can drain freely and joints align with flashing and trim:
- Prefer clip-based systems that minimize or eliminate horizontal wood furring behind vertical siding to maximize drainage.
- Plan starter rails and reveals so vertical joints terminate at flashing points and not mid-panel without drainage.
- When incorporating board-and-batten or batten-style vertical detailing, ensure battens do not obstruct the drainage path behind the cladding.
Field checks and homeowner-focused guidance
Before sealing the project, verify on-site conditions and provide the homeowner with a maintenance plan:
- Confirm continuous WRB with correct flashings and window flanges.
- Check that the 3/8"–1/2" cavity depth is maintained and free of insulation or debris.
- Test vents for obstruction and ensure insect screens are secured and clean.
- Inspect fastener torque and spacing; adjust or replace any compromised clips or boards.
- Provide a simple maintenance checklist: clear vents, inspect flashings annually, re-seal where necessary.
Frequently asked practical questions
What gap width is typical for a rainscreen?
Generally expect a 3/8" (0.375") to 1/2" gap for most wood and fiber-cement systems; always follow your manufacturer’s guidance for your specific system (Hardie or otherwise).
Can I retrofit a rainscreen over existing siding?
Yes, many retrofits involve adding vertical or horizontal furring or clip rails. Ensure WRB integrity and flashing are addressed; in some cases, removing old siding to install a continuous WRB yields a more reliable retrofit.
Are special fasteners required for exterior hardwoods?
Yes. Use stainless-steel fasteners and follow the hardwood manufacturer’s recommendations for size, spacing, and predrilling to avoid splitting and staining.
Next steps: planning a rainscreen project
Gather the installation guides for WRB, clip systems (for example, Climate-Shield CS2), venting components (Cor-A-Vent), and the siding you intend to use. Draft a wall-by-wall plan detailing vent routes, starter details, and flashing sequences. If you’re using a manufacturer-specific system, follow their sequence precisely to maintain warranties.
What experiences have you had with rainscreen installations? Share your project notes, questions, or photos in the comments to help others plan and execute durable, moisture-smart siding installations.
